Where Does Air Compressor Noise Come From? What Are the Noise Reduction Methods?

As the “power heart” of industry, the noise generated by air compressors during operation (usually 85-120dB) not only violates the Emission Standard for Industrial Enterprise Boundary Environmental Noise but also impairs the hearing of operators and disrupts the production environment. To achieve effective noise reduction, it is first necessary to identify the “source code” of the noise—it does not come from a single source, but is the result of the superposition of multiple mechanisms such as mechanical vibration, airflow disturbance, and electromagnetic vibration.

I. Core Sources of Air Compressor Noise (Classified by Generation Mechanism)

1. Main Unit Operation Noise (Core Noise Source, Accounting for 30%-50%)

• Screw-type main unit: Noise originates from mechanical vibration caused by the high-speed meshing of two rotors (tooth surface impact, bearing friction) and airflow pulsation noise generated by the “compression-release” of airflow in the compression chamber (frequency concentrated at 500-2000Hz, belonging to mid-to-high frequency noise with strong penetration).
• Piston-type main unit: Noise is more complex, including the impact of the piston’s reciprocating motion on the cylinder wall, the impact of valve opening/closing (mechanical vibration noise, mainly low-frequency), and turbulent noise of compressed airflow at the valve (high-frequency). The overall noise is 5-15dB higher than that of screw-type units.
• Scroll-type main unit: Due to the absence of reciprocating motion, mechanical noise is the lowest (usually ≤75dB), with the main noise being slight vibration from scroll wrap meshing and turbulent sound of airflow passing through the exhaust port.

2. Drive Motor Noise (Accounting for 20%-30%)

• Electromagnetic noise: Periodic changes in electromagnetic force between the stator and rotor cause iron core vibration (frequency is related to power frequency and motor pole number; for example, under a 50Hz power supply, the fundamental frequency of electromagnetic noise for a 4-pole motor is 200Hz).
• Mechanical noise: Bearing wear (friction between balls and raceways, high-frequency “rustling sound”), rotor imbalance (centrifugal force vibration caused by high-speed rotation, low-frequency “hum”), and aerodynamic noise from the motor’s cooling fan (if equipped with a fan).

3. Cooling System Noise (Accounting for 15%-25%)

• Air-cooled models: When the cooling fan rotates at high speed, friction between airflow and the fan blade surface, and eddies generated by the fan blade wake (frequency is related to fan speed and number of blades; for example, a 1450r/min fan with a 6-blade structure has a noise fundamental frequency of approximately 145Hz). If the fan accumulates dust or the blades are deformed, noise increases by 3-8dB.
• Water-cooled models: Mechanical vibration noise from water pump operation (bearings, impellers) and turbulent noise from cooling water flow in pipelines (if the pipeline diameter changes abruptly or there are impurities, noise is intensified).

4. Pipeline System Noise (Accounting for 10%-20%)

• Airflow pulsation noise: When compressed air flows in pipelines, periodic pressure fluctuations (especially at valves and elbows) cause pipeline vibration and radiate noise (mainly low-frequency, which is easily transmitted to walls and the ground).
• Vibration transmission noise: Vibrations from the main unit and motor are transmitted to the building structure through pipeline fixing brackets (e.g., rigid connections), causing secondary noise (such as resonance of factory floors and walls).

5. Intake and Exhaust Noise (Accounting for 5%-15%)

• Intake noise: When air enters the main unit through the intake port, high flow rates (up to 20-30m/s) generate turbulent noise. A clogged air intake filter intensifies airflow disturbance, increasing noise by 3-5dB.
• Exhaust noise: If the air compressor exhausts directly (e.g., without an air tank or muffler), the sudden release of high-pressure air produces impact noise (high-frequency impulse noise with a sound pressure level of 110-120dB, which is highly damaging to hearing).

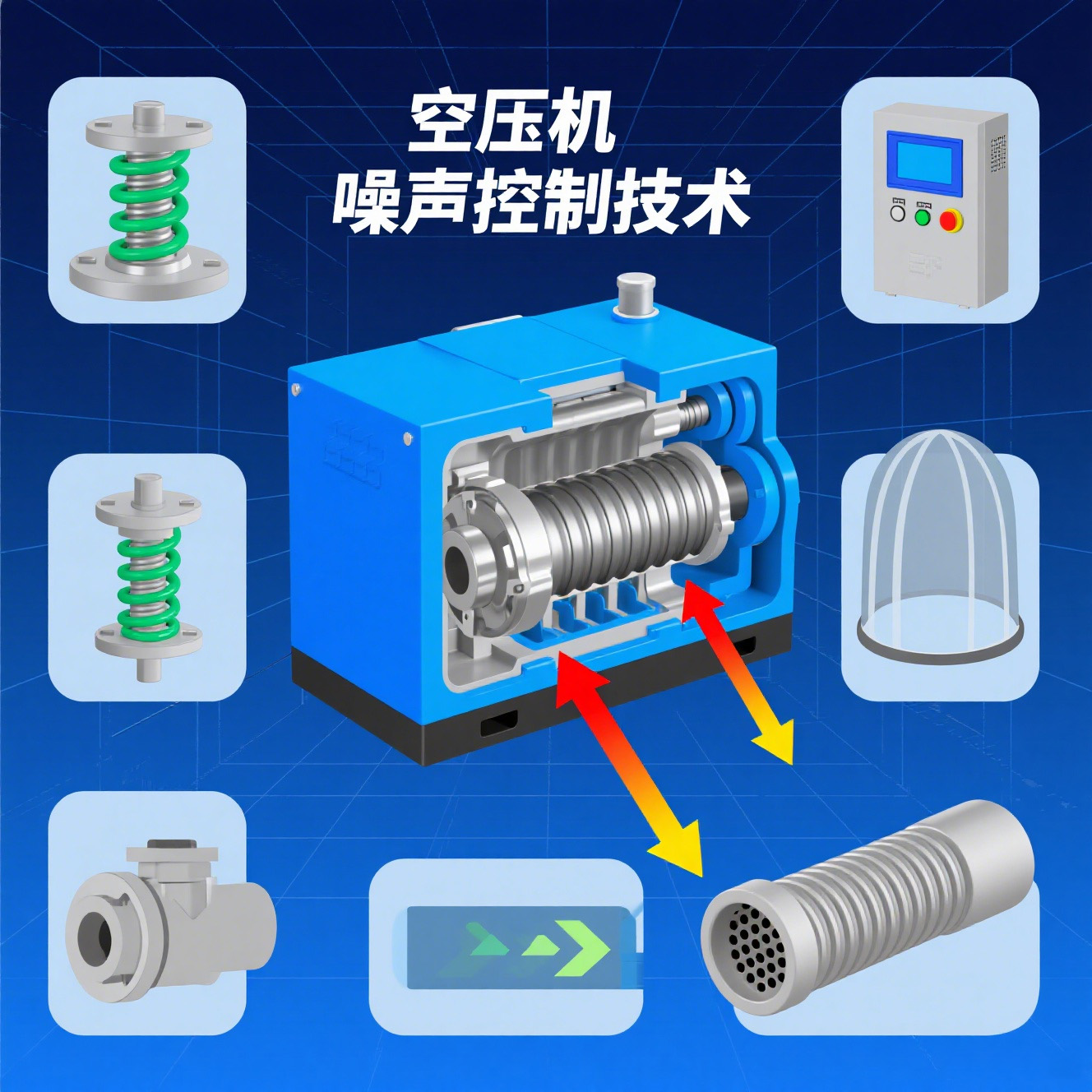

II. Professional Air Compressor Noise Reduction Methods (Full-Process Control from Source to Transmission)

1. Source Control: Reduce Noise Intensity at the Generation Stage

• Choose the right main unit type: Prioritize low-noise models, such as scroll-type (70-80dB) and variable-frequency screw-type (5-10dB lower than fixed-frequency models). Avoid using piston-type units (90-110dB) in personnel-dense areas.
• Optimize the motor and cooling system: Use low-noise motors (e.g., YE3 series ultra-high-efficiency motors, which are 3-5dB quieter than ordinary motors); replace air-cooled models with “airfoil-type low-noise fans” (to reduce eddy noise); install flexible joints at the inlet and outlet of water pumps in water-cooled models (to reduce vibration transmission).
• Control intake and exhaust: Install a “resistive + reactive composite air intake muffler” at the intake port (resistive sound-absorbing materials absorb high frequencies, and reactive cavities offset low frequencies, achieving a noise reduction of 15-25dB); the exhaust end must be equipped with an exhaust muffler (e.g., porous diffusion type, expansion interference type); if direct exhaust is necessary, add a silencing tube.
• Standardize lubricating oil and maintenance: Use high-viscosity, anti-wear lubricating oil (to reduce friction and vibration of main unit components); regularly clean the air intake filter (to avoid clogging that intensifies intake noise) and replace motor bearings (worn bearings increase noise by 5-10dB).

2. Transmission Blocking: Cut Off Noise Transmission Paths

• Main unit vibration and noise reduction: Install “rubber shock absorbers” between the air compressor base and the ground (suitable for small and medium-sized units, with a vibration isolation efficiency of 30%-40%) or “spring shock absorbers” (suitable for large units, with strong load-bearing capacity and a vibration isolation efficiency of 50%-60) to avoid rigid contact; for multiple air compressors, build a “vibration isolation platform” (cast with reinforced concrete and equipped with vibration isolation pads to reduce vibration superposition).
• Pipeline sound insulation and vibration reduction:
  • Use “elastic supports” (e.g., rubber pipe clamps, spring hangers) for pipelines instead of rigid fixing (to reduce vibration transmission, achieving a noise reduction of 3-5dB).
  • Install “airflow pulsation attenuators” (e.g., volumetric, porous types) on long pipelines (to reduce pressure fluctuations).
  • Wrap key pipelines (e.g., near the main unit outlet and valves) with “sound insulation felt + centrifugal glass wool” (sound insulation felt blocks low frequencies, and glass wool absorbs high frequencies, achieving an overall sound insulation of 15-20dB).
• Install sound insulation enclosures/rooms: For high-noise air compressors (e.g., piston-type, large screw-type), build “detachable sound insulation enclosures” (outer shell made of steel plates, lined with 50-100mm thick centrifugal glass wool or sound-absorbing cotton, achieving a noise reduction of 20-30dB); if multiple units are placed centrally, build a “sound insulation room” (with sound-absorbing treatment on walls and ceilings, sound insulation doors, and mufflers at vents).
• Environmental sound absorption treatment: Paste “porous sound-absorbing materials” (e.g., sound-absorbing cotton, sound-absorbing panels, with a sound absorption coefficient of 0.6-0.8, effective for mid-to-high frequency noise) on the walls and ceiling of the air compressor room to reduce the reflection and superposition of noise indoors (reducing indoor noise by 5-10dB).

3. Active Intelligent Noise Reduction: Reduce Noise with Technological Innovation

• Variable-frequency control technology: Adopt variable-frequency screw compressors that automatically adjust the main unit speed according to air demand (speed decreases when load is low). Noise decreases as speed decreases (a 20% decrease in speed reduces noise by approximately 6dB), while saving 20%-30% energy.
• Active Noise Control (ANC): Install an “ANC system” (composed of microphones, controllers, and speakers) in the noise transmission path. By emitting sound waves with opposite phases to the noise, part of the noise is canceled out (suitable for mid-to-low frequency noise, achieving a noise reduction of 5-15dB, mostly used near precision workshops and laboratories).

4. Receiver Protection: Auxiliary Measures for Personnel

Conclusion
