Deep Hole Water Well Air Compressor – LGZJ Series

Short Description:

Deep Hole Wate Well Air Compressor – LGZJ Series,  are aimed at solving the common challenges posed by your engineering. Including mines, construction, wells, geothermal etc. Power range 400~750 HP, exhaust volume range up to 49m³/min.

Dual pressure section, can adapt to different working conditon. High temperature resistance, not afraid of extreme weather.


Product Detail

Product Tags

Features

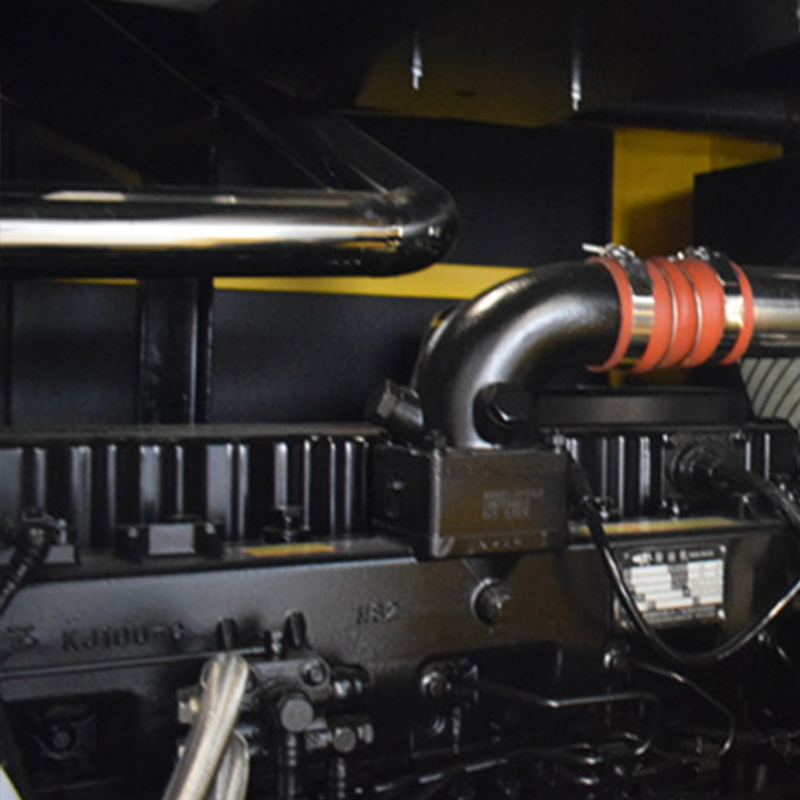

Professional engine, strong power

  • Higher reliability
  • Stronger power

Patented main structure, reliable and efficient

  • Innovative design
  • High reliability performance

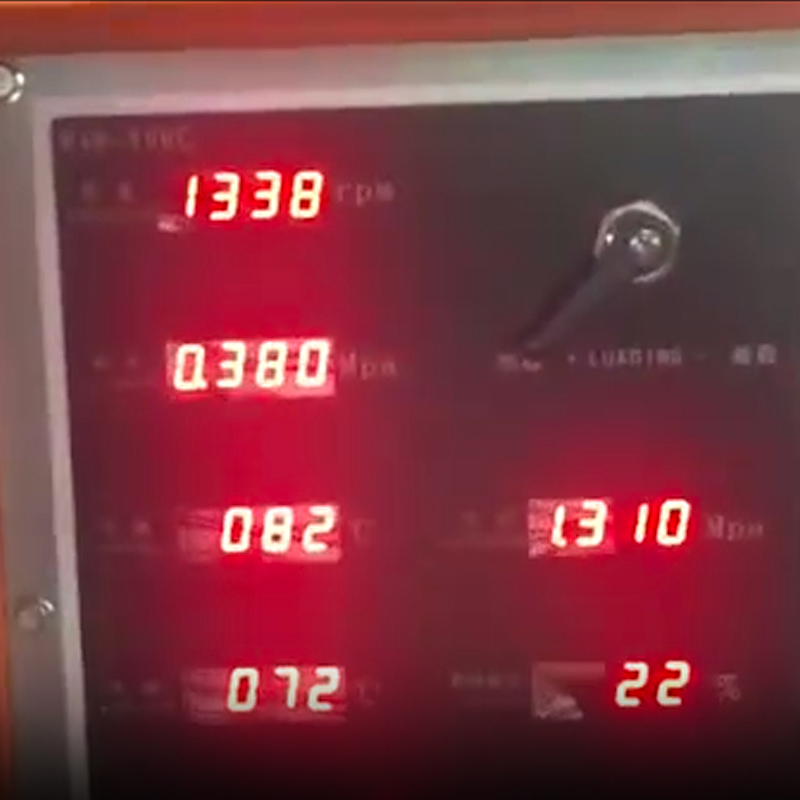

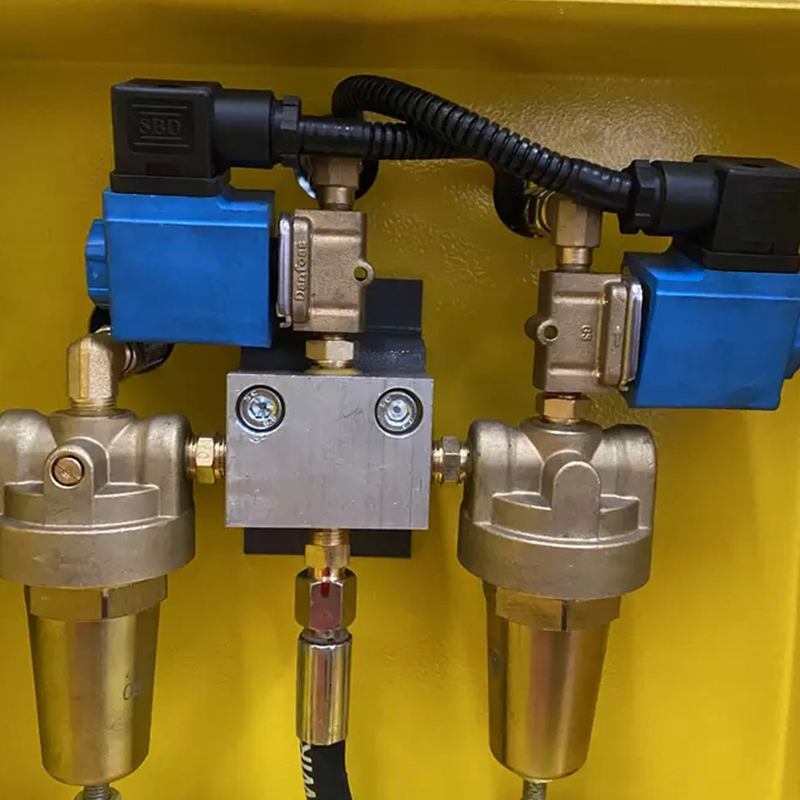

Air volume automatic control system

  • Air volume adjustment device automatically and steplessly
  • Achieve the lowest fuel consumption

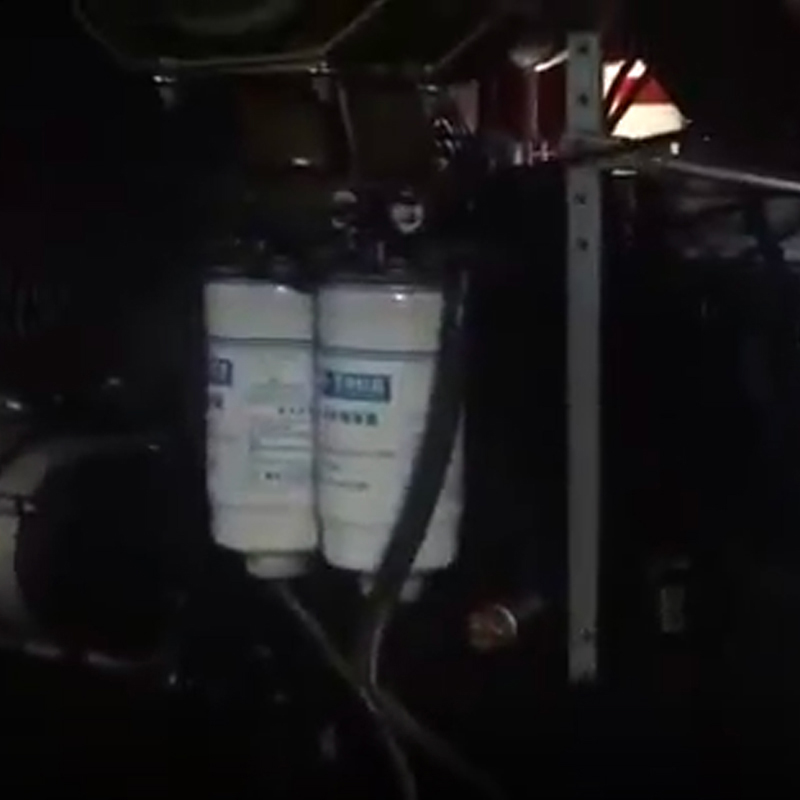

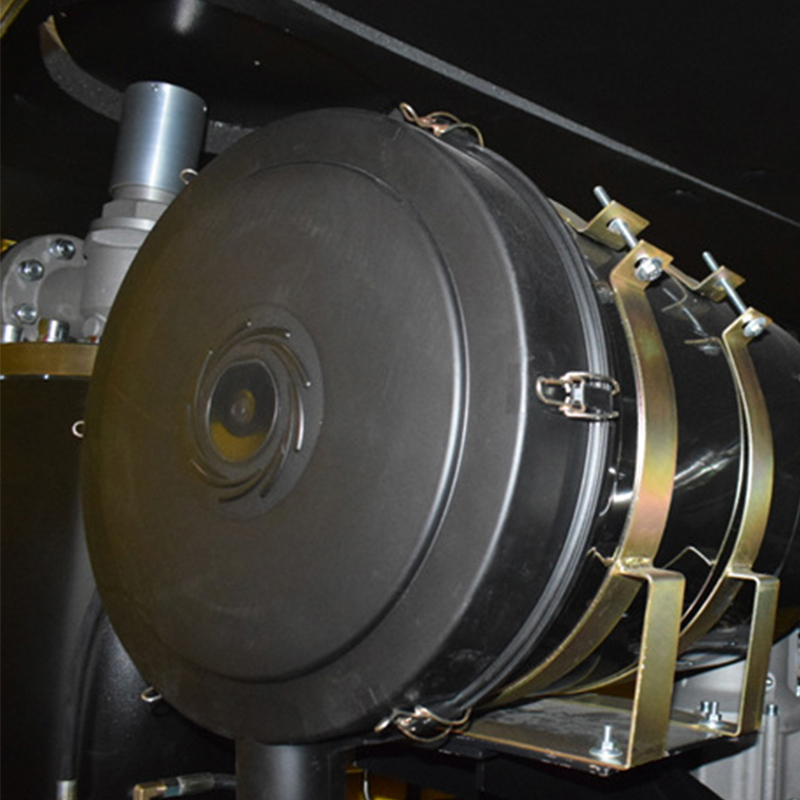

Multiple air filtration systems

  • Prevent the influence of environmental dust
  • Keep the oil content below 3ppm

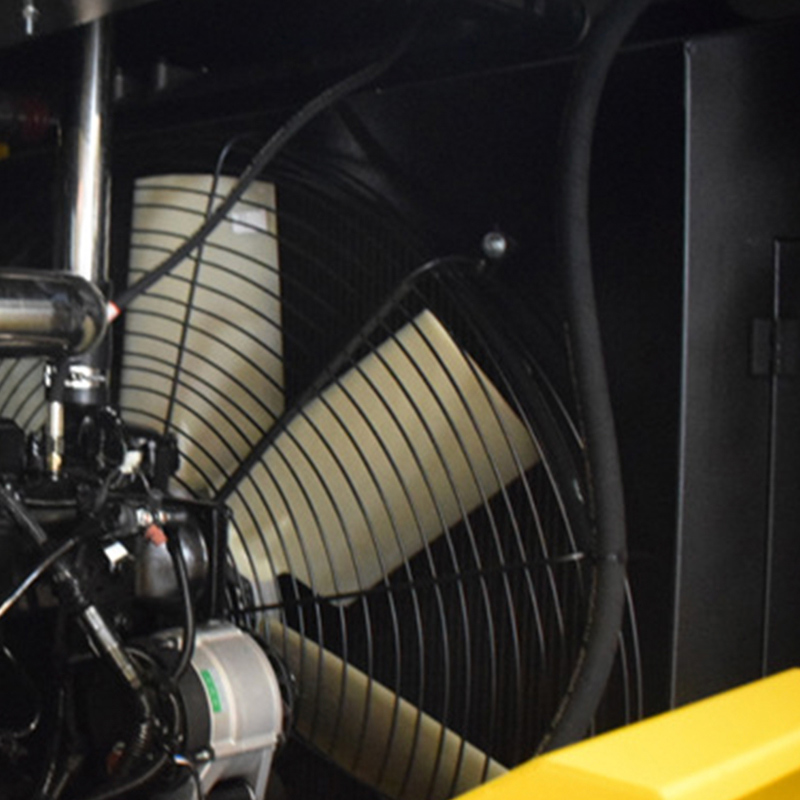

High efficiency cooling system

  • Adapt to extreme environment
  • More environmental friendly

Open design, easy to maintain

  • The spacious opening doors and windows, convenient to maintain and repair
  • Flexible on-site movement, reduce operating costs

Product Details

LGZJ Series Parameters

Model Exhaust
pressure(Mpa)
Exhaust volume
(m³/min)
Motor power(KW) Exhaust connection Weight(kg) Dimension(mm)
LGZJ-27/25-30/20 2.0-2.5 27-30 Yuchai Country 3 :400HP G2x1,G3/4x1 4100 3650x2000x2200
LGZJ-31/25-35/18 1.7-2.5 31-35 Yuchai Country 3: 400HP G2x1,G3/4x1 4100 3650x2000x2200
LGZJ-37/25-41/17 1.7-2.5 37-41 Yuchai Country 3: 560HP G2x1,G3/4x1 4800 3800x2200x2320
LGZJ-36/30-41/20 2.0-3.0 36-41 Yuchai Country 3: 560HP G2x1,G3/4x1 4800 3800x2200x2320
LGZJ-36/30-41/20K 2.0-3.0 36-41 Cummins Country 3:550HP G2x1,G3/4x1 4800 3800x2200x2320
LGZJ-45/30-49/21 2.1-3.0 45-49 Yuchai Country 3: 750HP G2x1,G3/4x1

Applications

ming

Mining

Water-Conservancy-Project

Water Conservancy Project

road-railway-construction

Road/Railway Construction

shipbuilding

Shipbuilding

Energy-and-geothermal-drilling

Geothermal
