Screw Air Compressor (fixed/variable frequency) – BK Series

Short Description:

BOREAS (BK) series screw air compressors are developed by Kaishan to meet the needs of users in the field of low-power, low-cost screw air compressors.

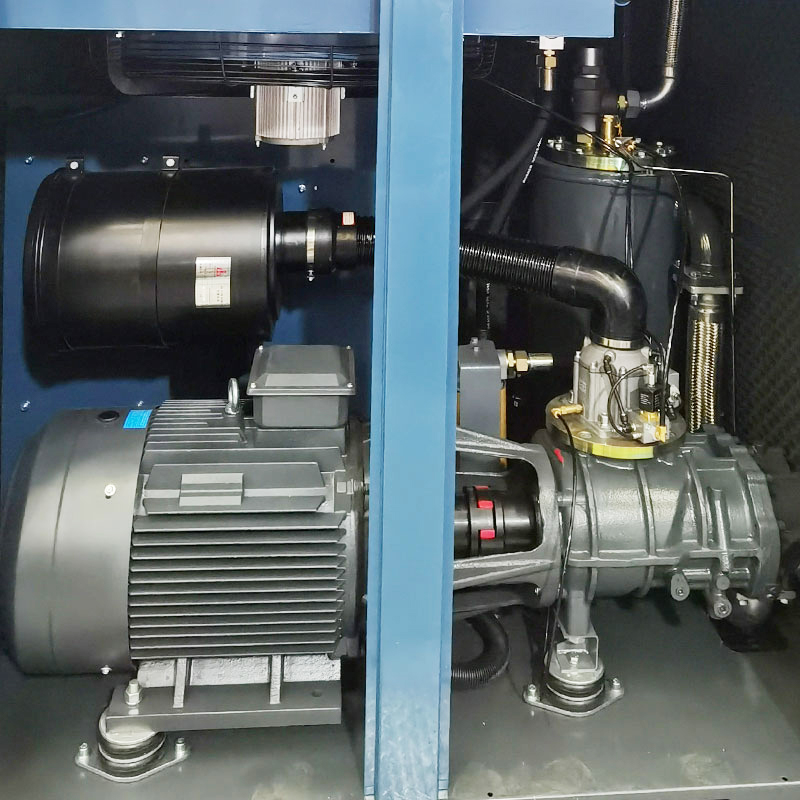

Equipped with a Y-type screw main engine designed by Dr. Tang Yan to ensure its superior performance. In addition, engineers and technicians have carefully designed other components and systems to keep costs of air compressor down, while maintaining good performance.

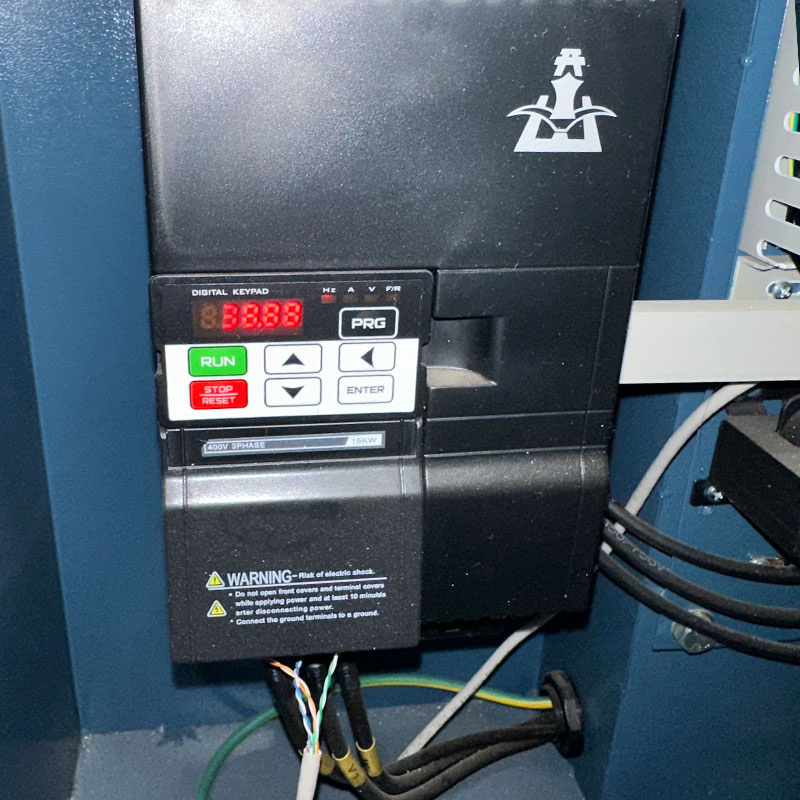

BMVF series is Kaishan permanent magnet variable frequency air compressor,mainly focus on industrial air compressor user, which saves 30% electricity than ordinary air compressors. Provide reliable air compressor source to industrial use. It is popular among users for its reasonable price, high efficiency, and convenient operation and maintenance.

Send email to us Whatsapp

Product Detail

Product Tags

Features

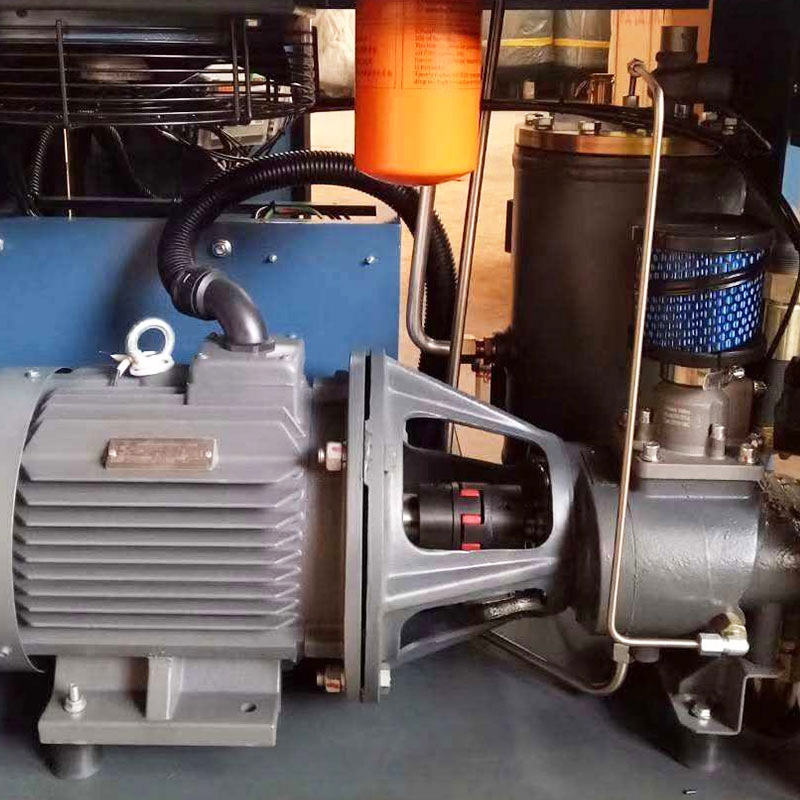

IEC high-efficiency drive motor

Automatic dual control

IP54 and high temperature F class protection grade

Overload start protection

High exhaust temperature shutdown

Easy to use and maintenance free

Product Details

BK Series Parameters

Model	Exhaust pressure(Mpa)	Exhaust volume (m³/min)	Motor power (KW)	Exhaust connection	Weight (kg)	Dimension (mm)
BK7.5-8G	0.8	1.2	7.5	G3/4	200	800x620x800
BK7.5G-8	0.8	1.1	7.5	G3/4	200	880x510x800
BK11-8G	0.8	1.7	11	G1	280	1000x670x1090
BK15-8G	0.8	2.4	15	G1	280	1000x670x1090
BK15-8	0.8	2.4	15	G1	270	700x670x1250
BK15-10	1	2.2	15	G1	270	700x670x1250
BK15-13	1.3	1.7	15	G1	270	700x670x1250
BK22-8G	0.8	3.45	22	G1	390	1200x800x1120
BK22-10G	1	3.2	22	G1	390	1200x800x1120
BK22-13G	1.3	2.7	22	G1	390	1200x800x1120
BK30-8G	0.8	5	30	G1½	470	1340x850x1330
BK30-10G	1	4.4	30	G1½	470	1340x850x1330
BK30-13G	1.3	3.6	30	G1½	470	1340x850x1330
BK37-8G	0.8	6	37	G1½	560	1340x850x1330
BK37-10G	1	5.4	37	G1½	560	1340x850x1330
BK37-13G	1.3	4.6	37	G1½	560	1340x850x1330
BK45-8G	0.8	7.1	45	G1½	720	1480x1030x1340
BK45-10G	1	6.2	45	G1½	720	1480x1030x1340
BK45-13G	1.3	5.6	45	G1½	720	1480x1030x1340
BK55-8G	0.8	10	55	G1½	790	1480x1030x1340
BK55-10G	1	7.2	55	G1½	790	1480x1030x1340
BK55-13G	1.3	6.2	55	G1½	790	1480x1030x1340
BK75-8	0.8	13	75	G2	1200	1800x1190x1710
BK90-8	0.8	16	90	G2	1240	1800x1190x1710
BK110T-8	0.8	21	110	DN65	1630	2100x1230x1730
BK110-8	0.8	21	110	DN65	1680	2100x1230x1730
BK132T-8	0.8	24	132	DN65	1670	2100x1230x1730
BK132-8	0.8	24	132	DN65	1750	2100x1230x1730
KS175A-8F	0.8	24	132	DN65	1470	1800x1230x1670
KS150-8-Ⅱ	0.8	22	110	DN65	1950	2100x1230x1730
KS175-8-Ⅱ	0.8	25	132	DN65	1990	2100x1230x1730

BMVF Series Parameters

Model	Exhaust pressure(Mpa)	Exhaust volume (m³/min)	Motor power (KW)	Exhaust connection	Weight (kg)	Dimension (mm)
BMVF7.5	0.65-1.0	1.00-1.25	7.5	G¾	170	880x510x800
BMVF11	0.65-1.0	1.50-1.85	11	G1	220	1000x670x1090
BMVF15	0.65-1.0	2.05-2.35	15	G1	250	1000x670x1090
BMVF22	0.65-1.0	2.95-3.95	22	G1	330	1200x800x1120
BMVF37	0.65-1.0	5.05-6.35	37	G1½	500	1340x850x1330
BMVF45	0.65-1.0	6.45-8.20	45	G1 ½	660	1480x1030x1365
BMVF55	0.65-1.0	8.20-9.85	55	G1 ½	710	1480x1030x1365
BMVF75	0.65-1.0	10.50-13.10	75	G2	1170	1800x1190x1710
BMVF90	0.65-1.0	12.50-15.50	90	G2	1180	1800x1190x1710
BMVF110	0.65-0.8	22	110	DN65	1770	2700x1230x1730
BMVF132	0.65-0.8	24	132	DN65	1860	2700x1230x1730
