Portable Electrical Air Compressor – KSDY Series

Short Description:

KS series can be used as the drilling rig component in different industries like mining, water conservancy project, road/railway construction, shipbuilding, energy exploitation project, military project, etc.

It has been widely recognized by our customers.

Portable electrical screw air compressor – KSDY series, power range 75~132 kw, exhaust volume range up to 22m³/min. Can be customized with different exhaust volumes and different exhaust pressures according to your needs.

Send email to us Whatsapp

Product Detail

Product Tags

Features

Professional engine, strong power

Higher reliability
Stronger power
Better fuel economy

Air volume automatic control system

Air volume adjustment device automatically
Steplessly to achieve the lowest fuel consumption

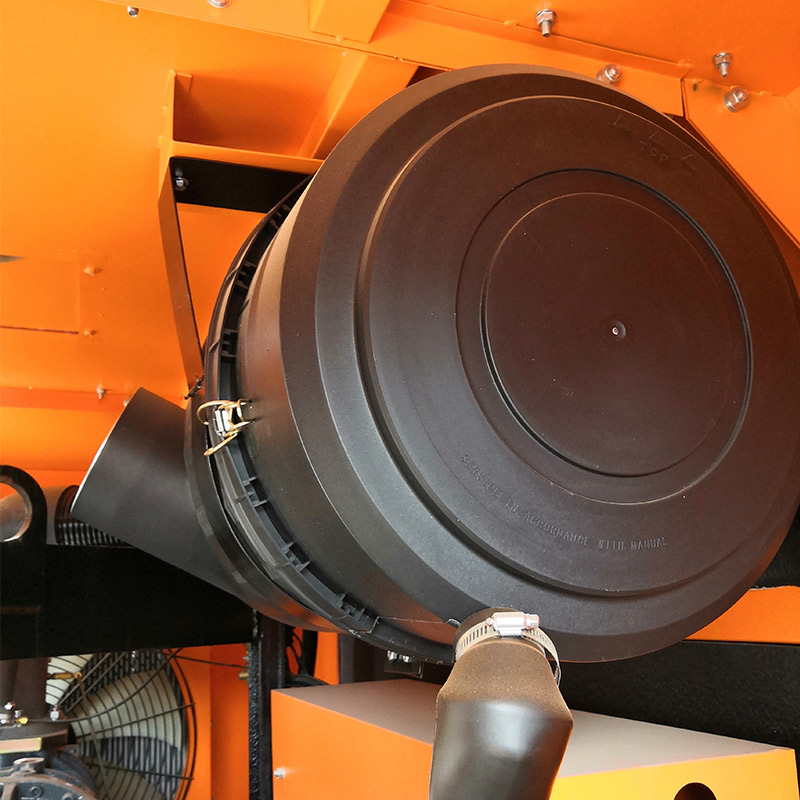

Multiple air filtration systems

Prevent the influence of environmental dust
Ensure the operation of the machine

SKY patent, optimized structure, reliable and efficient

Innovative design
Optimized structure
High reliability performance.

Low noise operation

Quiet cover design
Low operating noise
The machine design is more environmentally friendly

Open design, easy to maintain

The spacious opening doors and windows make it very convenient to maintain and repair.
Flexible on-site movement, reasonable design to reduce operating costs.

Product Details

Parameters

Model	Exhaust pressure(Mpa)	Exhaust volume (m³/min)	Motor power(KW)	Exhaust connection	Weight(kg)	Dimension(mm)
KSDY-13.6/8	0.8	13.6	75	G2×1,G¾×1	1750	2700×1700×1700
KSDY-12.5/10	1	12.5	75	G2×1,G¾×1	1750	2700×1700×1700
KSDY-10/14.5 (Two rounds)	1.45	10	75	G2×1,G¾×1	1600	2500×1530×1700
KSDY-16.5/8	0.8	16.5	90	G2×1,G¾×1	1940	2730×1680×1800
KSDY-13/14.5 (Two rounds)	1.45	13	90	G2×1,G¾×1	1760	2700×1670×1800
KSDY-13/14.5 (Four rounds)	1.45	13	90	G2×1,G¾×1	1910	2730×1680×1800
KSDY-20/8	0.8	20	110	G2×1,G¾×1	3115	3065×1835×2000
KSDY-16.5/12	1.2	16.5	110	G2×1,G¾×1	3000	3065×1835×20000
KSDY-24/8	0.8	24	132	G2×1,G¾×1	3150	3065×1835×2000
KSDY-18/13	1.3	18	132-2level	G2×1,G¾×1	3070	3065×1835×2000
KSDY15/17	1.7	15	132-2level	G2×1,G¾×1	2975	3065×1835×2000
KSDY-20/18-II	1.8	20	132-2level	G2×1,G¾×1	3700	3400×1620×2200
KSDY-22/18-II	1.8	22	132-4 level	G2×1,G¾×1	3100	3400×1620×2200
