Portable Diesel Air Compressor – LGCY Series

Short Description:

Portable diesel air compressor – LGCY Series, equipped with Yuchai, Cummins, CAT, Kubota optional. Power range 18~650 HP, exhaust volume range up to 39m³/min.

Kaishan Group has the most complete portable screw compressor production line,and it is one of the few manufacturers with R&D technology and production of portable high-preesure screw compressors in the world.It can be widely used in industries like road, railway, mining, water conservancy project, shipbuilding, urban construction, energy and military project.

Send email to us Whatsapp

Product Detail

Product Tags

Features

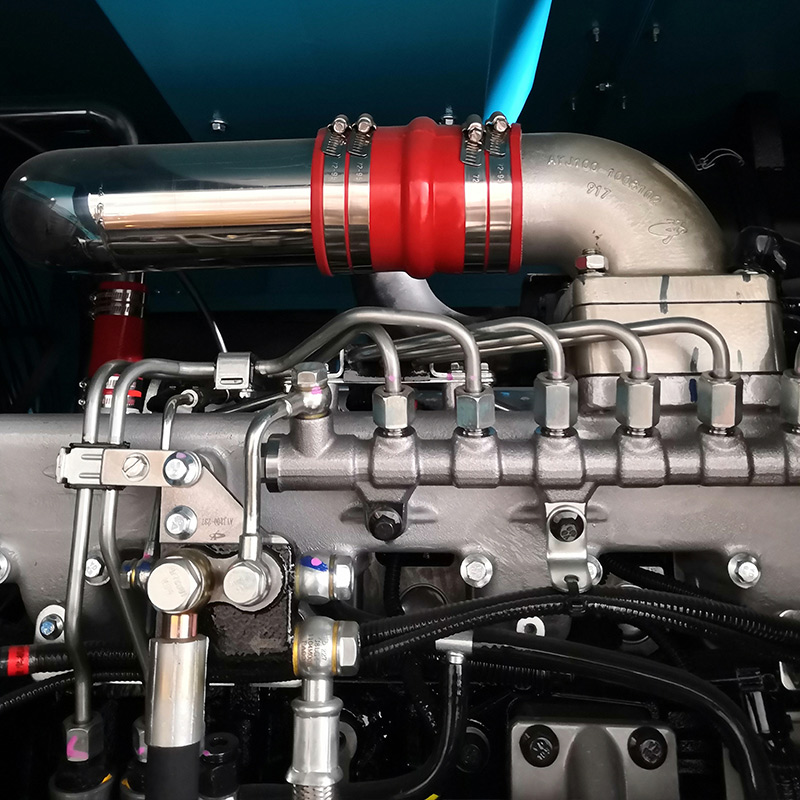

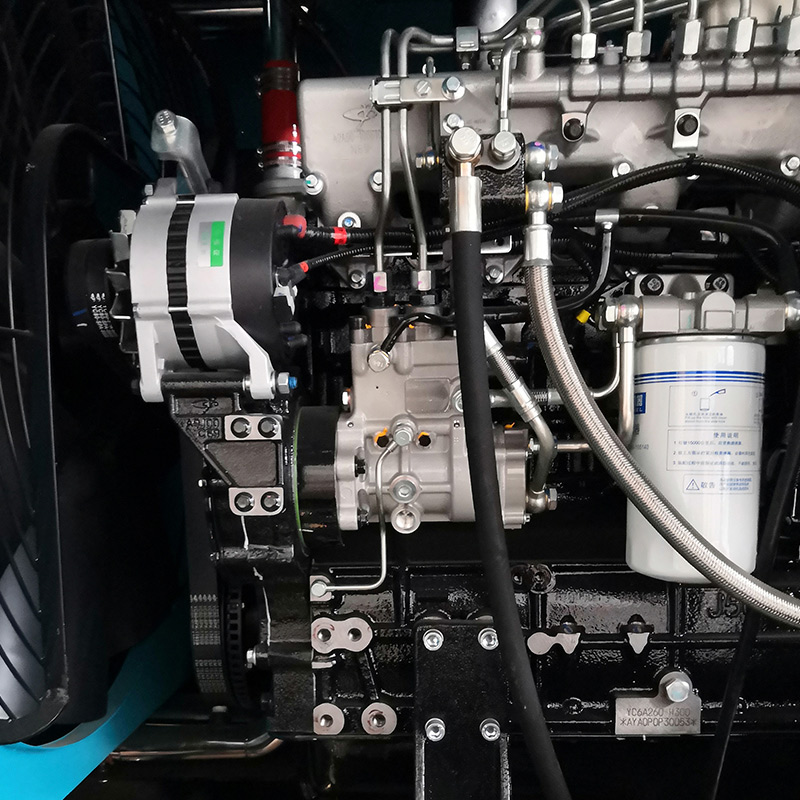

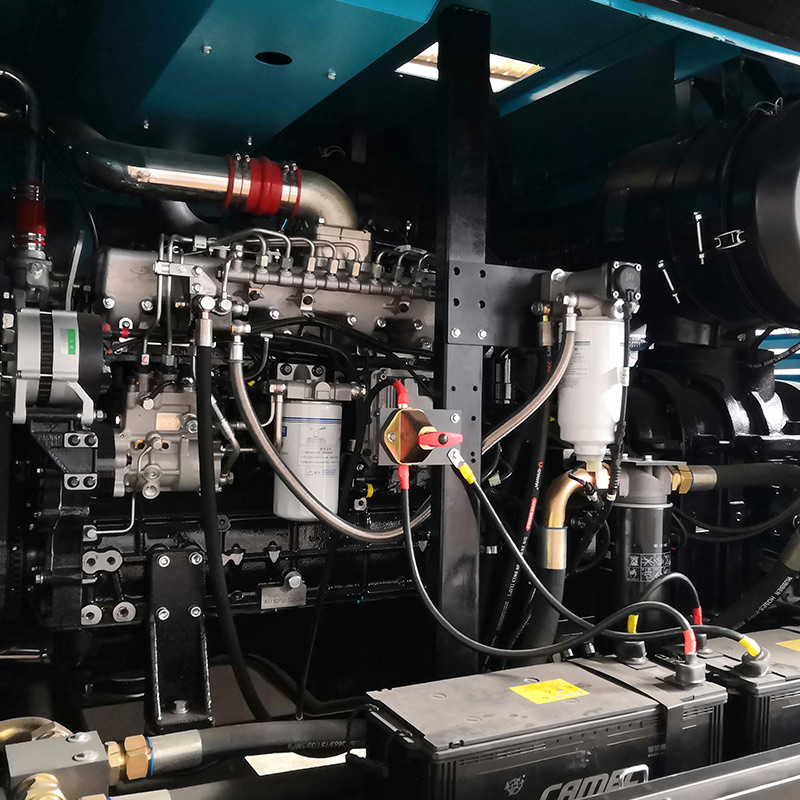

Professional engine, strong power

Higher reliability
Stronger power
Better fuel economy

Air volume automatic control system

Air volume adjustment device automatically
Steplessly to achieve the lowest fuel consumption

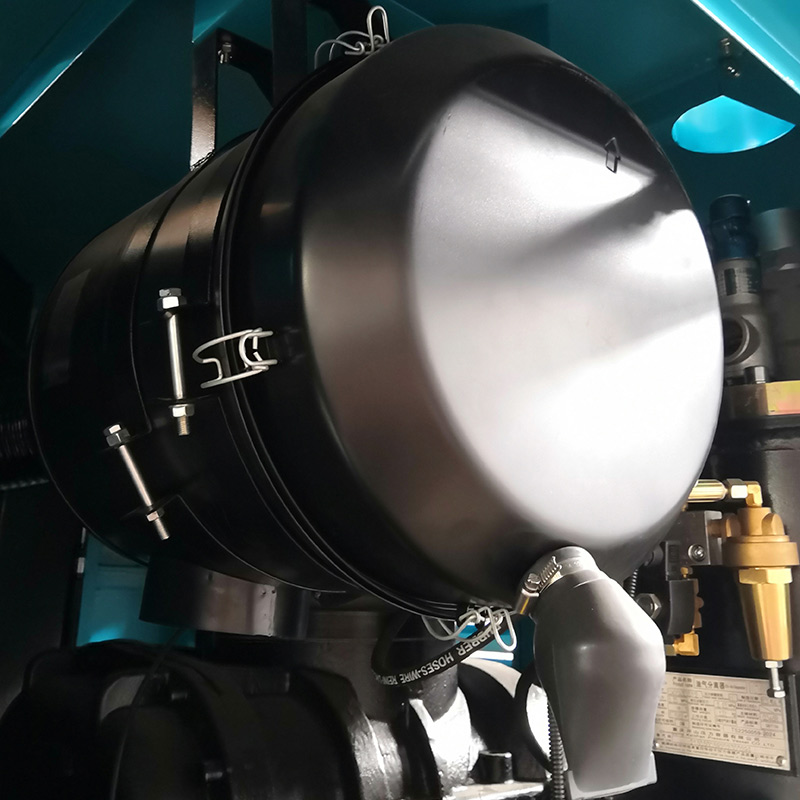

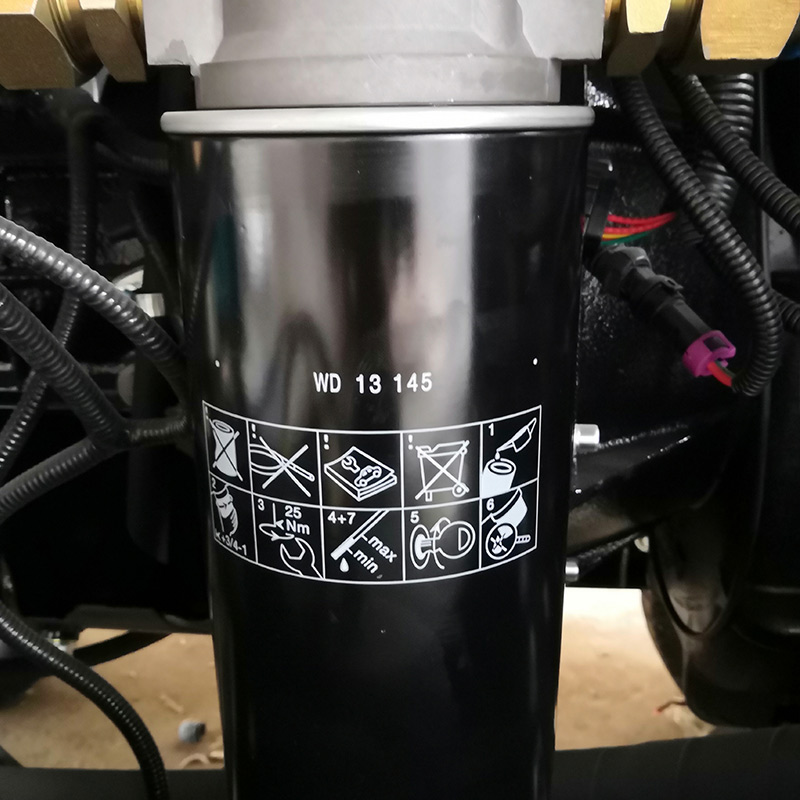

Multiple air filtration systems

Prevent the influence of environmental dust
Ensure the operation of the machine

SKY patent, optimized structure, reliable and efficient

Innovative design
Optimized structure
High reliability performance.

Low noise operation

Quiet cover design
Low operating noise
The machine design is more environmentally friendly

Open design, easy to maintain

The spacious opening doors and windows make it very convenient to maintain and repair.
Flexible on-site movement, reasonable design to reduce operating costs.

Product Details

Two-stage Compression Series Parameters

Model	Exhaust pressure(Mpa)	Exhaust volume (m³/min)	Motor power(KW)	Exhaust connection	Weight(kg)	Dimension(mm)
LGCY-11/18T (Two Rounds)	1.8	11	Yuchai 4-cylinder:160HP	G1 1/2×1,G3/4x1	2100	3400×2000x1930
LGCY-15/16T	1.6	15	Yuchai 4-cylinder:190HP	G1 1/2×1,G3/4x1	2400	3100x1520x2200
LGCY-15/16TK	1.6	15	Cummins:180HP	G1 1/2×1,G3/4x1	2400	3100x1520x2200
LGCY-15/18-17/12T	1.8-1.2	15-17	Yuchai 4-cylinder:190HP	G2×1,G3/4x1	2200	3000x1520x2300
LGCY-15/18-17/14TKL (Two Rounds)	1.8-1.4	15-17	Cummins:210HP	G2×1,G3/4x1	2200	3520x1980x2250
LGCY-17/18-18/15TK	1.8-1.5	17-18	Cummins:210HP	G2×1,G3/4x1	2200	3000x1520x2300
LGCY-17/18-18/15T	1.8-1.5	17-18	Yuchai:220HP	G2×1,G3/4x1	2500	3000x1520x2300
LGCY-19/20-20/17KL (Two Rounds)	2.0-1.7	19-20	Cummins:260HP	G2×1,G3/4x1	3400	3700x2100x2395
LGCY-19/20-20/17L (Two Rounds)	2.0-1.7	19-20	Yuchai:260HP	G2×1,G3/4x1	3400	3700x2100x2395
LGCY-25/8TK	0.8	25	Cummins:260HP	G2×1,G3/4x1	3000	3600x1600x2500
LGCY-19/21-21/18	2.1-1.8	19-21	Yuchai:260HP	G2×1,G3/4x1	3600	3300x1700x2350
LGCY-19/21-21/18K	2.1-1.8	19-21	Cummins:260HP	G2×1,G3/4x1	3600	3300x1700x2420
LGCY-21/21-23/18	2.1-1.8	21-23	Yuchai:310HP	G2×1,G3/4x1	3900	3300x1800x2300
LGCY-23/23-25/18	2.3-1.8	23-25	Yuchai:340HP	G2×1,G3/4x1	4500	4080x1950x2687
LGCY-23/23-25/18K	2.3-1.8	23-25	Cummins:360HP	G2×1,G3/4x1	4850	4150x1950x2850
LGCY-25/23-27/18K	2.3-1.8	25-27	Cummins:360HP	G2×1,G3/4x1	4850	4150x1950x2850
LGCY-27/25-29/18	2.5-1.8	27-29	Yuchai:400HP	G2×1,G3/4x1	4500	4080x1950x2687
LGCY-31/25	2.5	31	Yuchai:560HP	G2×1,G3/4x1	5100	3750x1950x2870
LGCY-31/25K	2.5	31	Cummins:550HP	G2×1,G3/4x1	5100	3750x1950x2870
LGCY-33/25	2.5	33	Yuchai:560HP	G2×1,G34x1	6800	4700x2160x2650

Singel-stage Compression Series Parameters

Model	Exhaust pressure(Mpa)	Exhaust volume (m³/min)	Motor power(KW)	Exhaust connection	Weight(kg)	Dimension(mm)
LGCY-5/7	0.7	5	Yuchai:50HP	G1 1/4X1 ,G3/4x1	1300	3240x1760x1850
LGCY-5/7R	0.7	5	Kubota:60HP	G1 1/4X1 ,G3/4x1	1300	3240x1760x1850
LGCY-6/7X	0.7	6	Xichai:75HP	G1 1/4X1 ,G3/4x1	1400	3240x1760x1850
LGCY-9/7	0.7	9	Yuchai:120HP	G1 1/4X1 ,G3/4x1	1550	2175x1760x1 785
LGCY-12/10	1	12	Yuchai 4-cylinder:160HP	G1 1/4X1 ,G3/4x1	1880	3300x1880x2100
LGCY-12/10K (CountryⅡ)	1	12	Cummins:150HP	G2X1,G3/4x1	2050	3300x1700x1900
LGCY-12.5/14L (Two Rounds)	1.4	12.5	Cummins:180HP	G2x1 ,G3/4x1	2100	3520x1980x2256
LGCY-14/14L (Two Rounds)	1.4	14	Cummins:210HP	G2x1 ,G3/4x1	2400	3520x1980x2356
LGCY-27/10	1	27	Yuchai:340HP	G2x1 ,G3/4x1	5000	4600x1950x2850
LGCY-27/10K	1	27	Cummins:360HP	G2x1 ,G3/4x1	5000	4600x1950x2850
LGCY-32/10	1	32	Yuchai:400HP	G2x1,G3/4x1	5000	4600x1950x2850
LGCY-32/10K	1	32	Cummins:360HP	G2x1 ,G3/4x1	5000	4600x1950x2850
LGCY-65/5	0.5	65	Yuchai:560HP	DN125	8500	4500x2350x2380
