Water well Drilling Rig – KS200

Short Description:

KS water well drilling rigs can reduce downtime and help you work safer.

Designed for safety, reliability, and productivity with products to serve all of your drilling needs.

Our drills provide ample power and versatility to reach target drilling depths in all types for soil conditions and rock formations. Additionally, our rigs are highly mobile, capable of reaching the most remote locations.

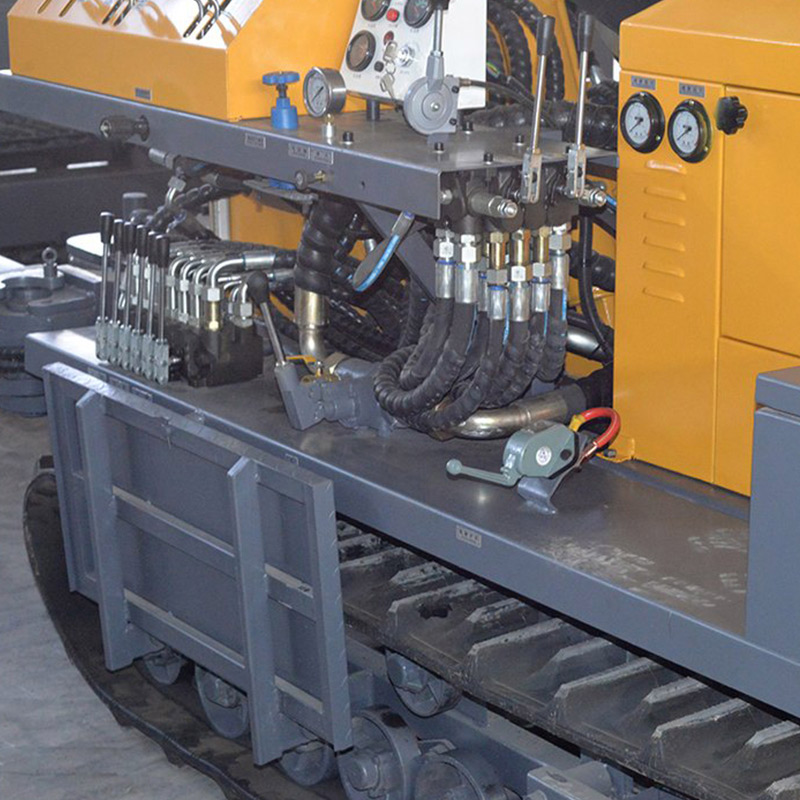

Rubber crawler and steel crawler are suitable for different working surfaces.

Dual systems can be added:
1.Aerodynamic system with air compressor
2.Mud pump system with mud pump

Send email to us Whatsapp

Product Detail

Product Tags

Features

Professional engine, strong power.

Fuel economy, lower fuel consumption and higher productivity.

Patented design composite boom, double oil cylinder lift.

Durable, heavy load, wide chain plate.

Easy to load and unload on the truck.

Easy maintenance, environmental friendly.

Product Details

Technical Parameters

KS200 Water Well Drilling Rig (Steel Crawler)
The weight(T)	5	Drill pipe diameter(mm)	Φ76 Φ89
The hole diameter(mm)	140-254	Drill pipe length(m)	1.5m 2.0m 3.0m
Drilling depth(m)	200	Rig lifting force(T)	13
One-time advance length(m)	3.3	Rapid rise speed(m/min)	30
Walking speed(km/h)	2.5	Fast feeding speed(m/min)	60
Climbing angles(max.)	30	Width of loading(m)	2.6
Equipped capacitor(kw)	65	Hoisting force of winch(T)	1.5
Using air pressure(Mpa)	1.7-2.5	Swing torque(N.m)	3200-4700
Air consumption(m³/min)	17-31	Dimension(mm)	3950×1630×2250
Swing speed(rpm)	45-70	Equipped with hammer	Medium and high wind pressure series
The penetration efficiency(m/h)	10-35	High leg stroke(m)	1.4
The engine brand	Quanchai engine
