Water Well Drilling Rig – KS350(Truck Mounted)

Short Description:

Our truck mounted drilling rigs is the quick and effective mobilization and installation, which is perfectly suited for drilling campaigns in challenging environmental conditions, on remote areas and/or rough terrain.
This machine is specially designed to meet the drilling needs of geothermal drilling, farm irrigation, home yard, garden and water well drilling. With a drilling diameter range of 40-200mm and a drilling depth of 80m to 100m, the machine is ideally suited for a wide variety of drilling.
Not only are our truck-mounted water well drilling rigs extremely easy to operate, they also have a long life and require minimal maintenance.
These robust and reliable truck mounted drilling rigs can adapt to virtually any rotary drilling application, as well as rotary percussion drilling techniques, in the most challenging ground conditions. Can be cutomized to different color you need.


Product Detail

Product Tags

Features

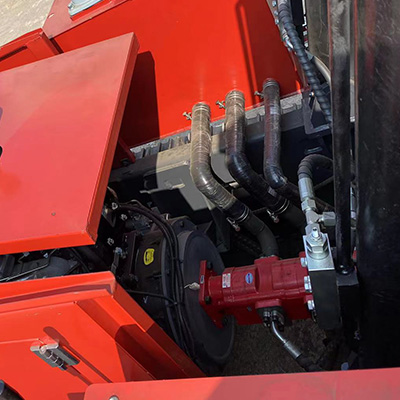

Professional engine, strong power.

Fuel economy, lower fuel consumption and higher productivity.

Patented design composite boom, double oil cylinder lift.

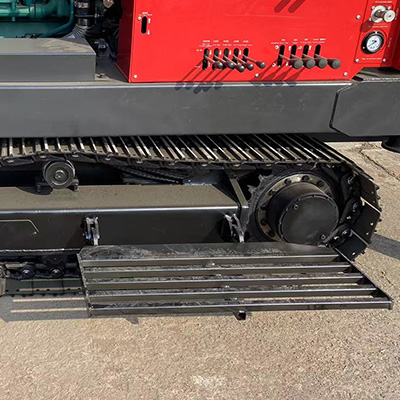

Durable, heavy load, wide chain plate.

Easy to load and unload on the truck.

Easy maintenance, environmental friendly.

Product Details

Technical Parameters

KS350 Water Well Drilling Rig (Truck Mounted)
The rig weight(T) 8.6 Drill pipe diameter(mm) Φ89 Φ102
The hole diameter(mm) 140-325 Drill pipe length(m) 1.5m  2.0m  3.0m 6.0m
Drilling depth(m) 350 Rig lifting force(T) 22
One-time advance length(m) 6.6 Rapid rise speed(m/min) 18
Walking speed(km/h) 2.5 Fast feeding speed(m/min) 33
Climbing angles(max.) 30 Width of loading(m) 2.7
Equipped capacitor(kw) 92 Hoisting force of winch(T) 2
Using air pressure(Mpa) 1.7-3.4 Swing torque(N.m) 6200-8500
Air consumption(m³/min) 17-36 Dimension(mm) 6000×2000×2550
Swing speed(rpm) 66-135 Equipped with hammer Medium and high wind pressure series
The penetration efficiency(m/h) 15-35 High leg stroke(m) 1.4
The engine brand Quanchai engine

Applications

KS180-10

Water well

KS180-9

Geothermal drilling for hot spring
