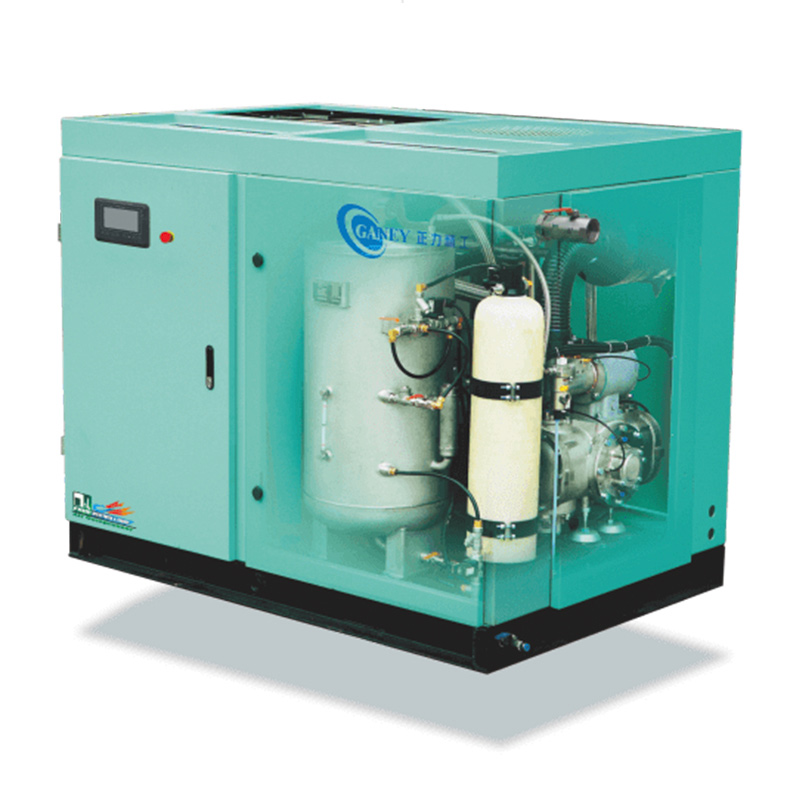

Oil Free Air Compressor – POG Series

Short Description:

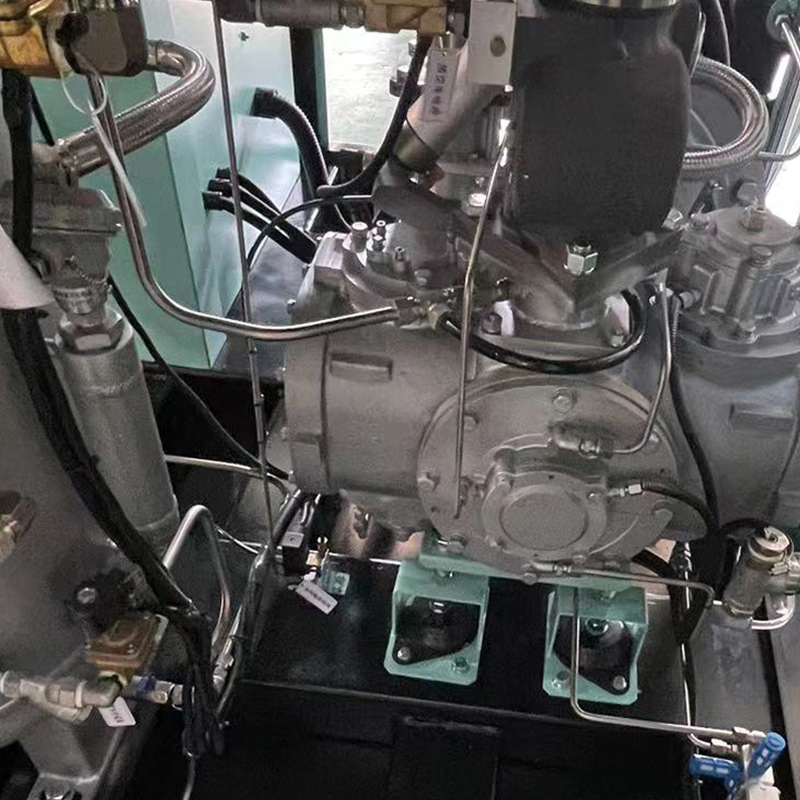

The host is sprayed with water for cooling and sealing, and the world’s most advanced patented sealing system is used between the compression chamber and the bearing to ensure that the entire system is oil-free.

The axial and radial force of the single screw is balanced, and the star wheel rotates freely with the screw under the water film lubrication, so the host components run smoothly under low load, ensuring low noise and durability.

Oil free air compressors have been designed specifically for applications where your air need is clean, pure and strict, resulting in high quality air for your end product.

Send email to us Whatsapp

Product Detail

Product Tags

Features

High reliability.

High efficiency.

Super energy saving.

Pure oil-free.

Low noise operation.

Low maintenance.

Product Details

POG Series Parameters

Model	Maximum working pressure (MPa)	Exhaust volume (m3/min)	Motor power (KW)	Noise dB(A)	Weight (kg)	Exhaust connection	Demension (mm)
POGWFD11	0.7	1.5	11	58	550	G1*	14008651150
	0.8	1.4
	1	1.2
POGWFD15	0.7	2.6	15	75±3	552
	0.8	2.3
	1	2
POGWFD22	0.7	3.5	22		600
	0.8	3.2
	1	2.7
POGWFD30	0.7	5.2	30	70±3	1630	G1½”	185011781480
	0.8	5
	1	3.6
POGWFD37	0.7	6.1	37
	0.8	5.8
	1	5.1
POGWD45	0.7	7.6	45	75±3	2200	G2*	210014701700
	0.8	7
	1	6
POGWD55	0.7	9.8	55		2280
	0.8	9.1
	1	8
POGW(F)D75	0.7	13	75	75±3	Whole system:2270 Air cooling system:650	DN65	Whole system: 216013701705 Air cooling system: 145014501666
	0.8	12
	1	11
POGW(F)D90	0.7	16	90		Whole system:2315 Air cooling system:800		Whole system: 216013701705 Air cooling system: 162016201846
	0.8	15.8
	1	14
