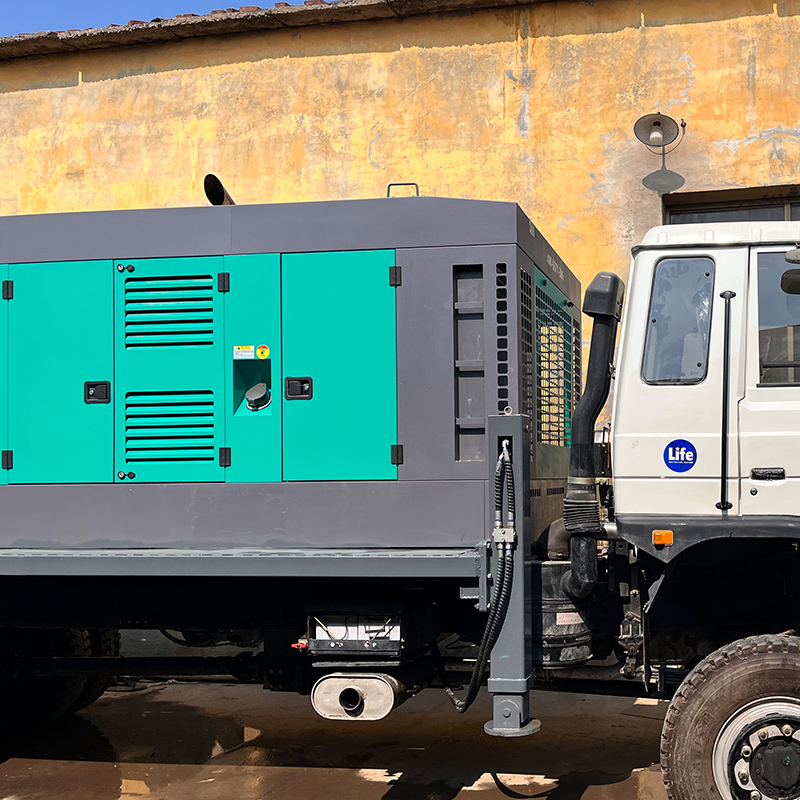

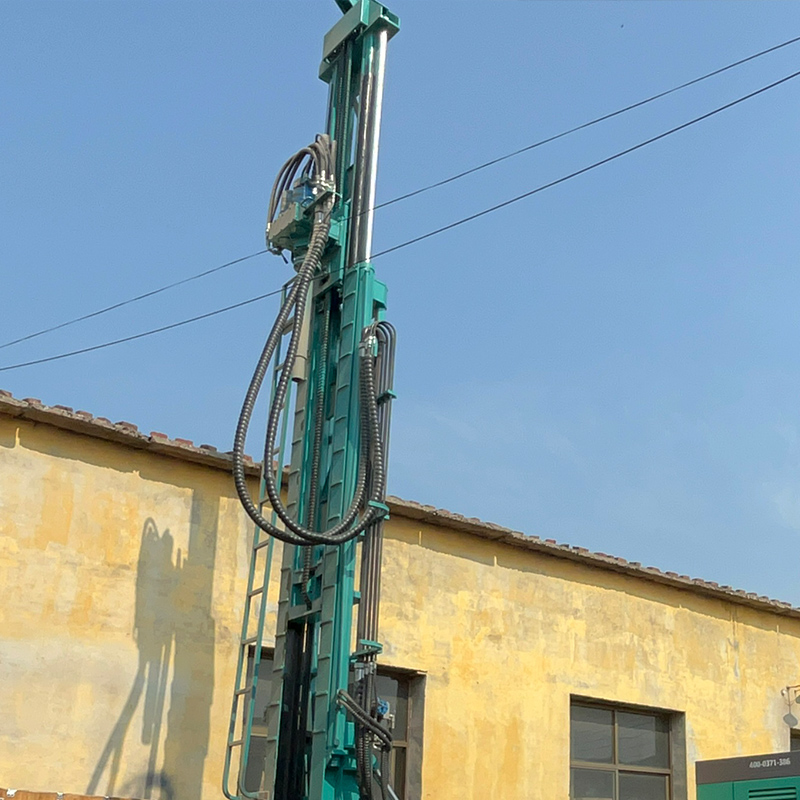

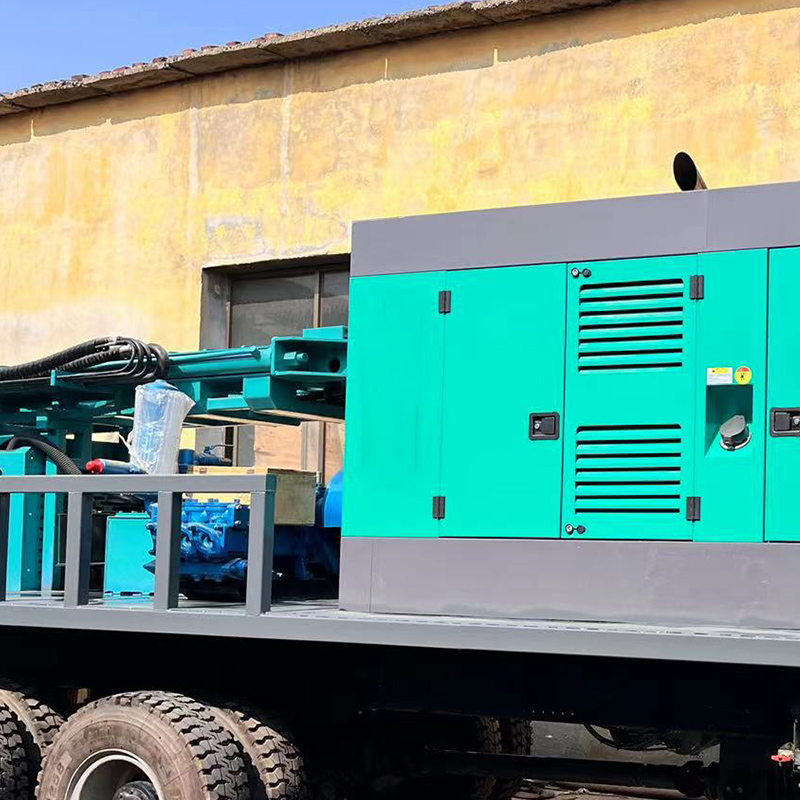

Water Well Drilling Rig – KS300(Truck Mounted)

Short Description:

The main advantage offered by our truck mounted drilling rigs is the quick and effective mobilization and installation, making them perfectly suited for drilling campaigns in challenging environmental conditions, on remote areas and/or rough terrain.

These robust and reliable truck mounted drilling rigs can adapt to virtually any rotary drilling application, as well as rotary percussion drilling techniques, in the most challenging ground conditions.

Help you with the economical solutions to water well drilling. The water well drilling machines built adopt high quality parts and materials, you may rely on us for the reliable quality and service.

Our water borehole drilling rigs are economically priced, portable and easy to operate, they are perfect for customers who are limited in budget, and would like to have investment back and see profit grow in a short duration. It can work as both shallow and deep water well drilling machine and with different borehole size.

Send email to us Whatsapp

Product Detail

Product Tags

Features

Professional engine, strong power.

Fuel economy, lower fuel consumption and higher productivity.

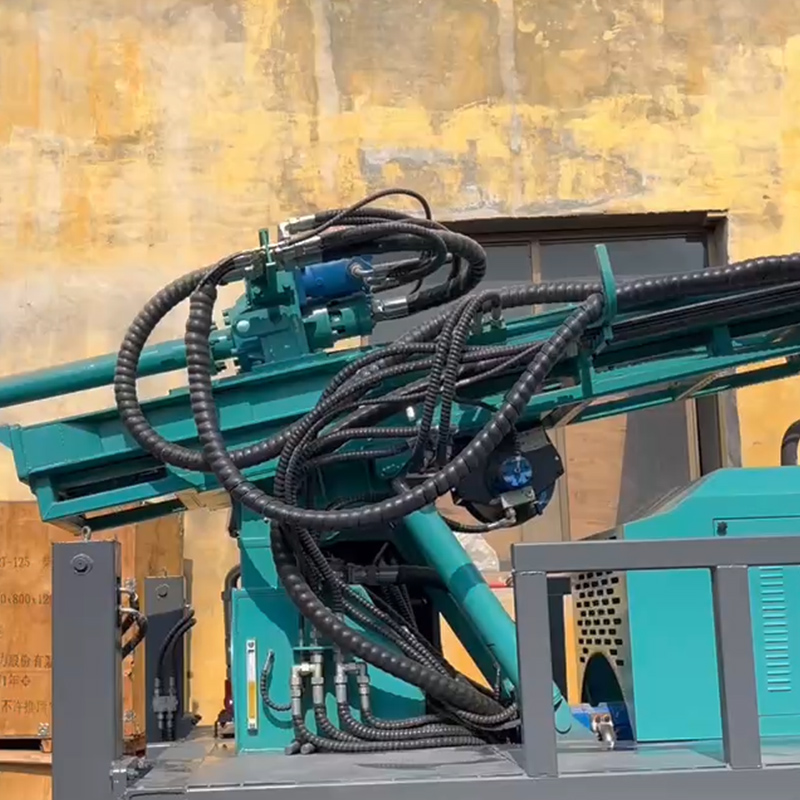

Patented design composite boom, double oil cylinder lift.

Durable, heavy load, wide chain plate.

Easy to load and unload on the truck.

Easy maintenance, environmental friendly.

Product Details

Technical Parameters

KS300 Water Well Drilling Rig (Truck Mounted)
The rig weight(T)	7.2	Drill pipe diameter(mm)	Φ76 Φ89 Φ89
The hole diameter(mm)	140-352	Drill pipe length(m)	1.5m 2.0m 3.0m
Drilling depth(m)	300	Rig lifting force(T)	18
One-time advance length(m)	3.3/4.8	Rapid rise speed(m/min)	22
Walking speed(km/h)	2.5	Fast feeding speed(m/min)	40
Climbing angles(max.)	30	Width of loading(m)	2.7
Equipped capacitor(kw)	85	Hoisting force of winch(T)	2
Using air pressure(Mpa)	1.7-3.0	Swing torque(N.m)	5700-7500
Air consumption(m³/min)	17-36	Dimension(mm)	4100×2000×2500
Swing speed(rpm)	40-70	Equipped with hammer	Medium and high wind pressure series
The penetration efficiency(m/h)	15-35	High leg stroke(m)	1.4
The engine brand	Quanchai engine
